2.4GHZ 1000mW Tx/Rx & 1/3-inch CCD Camera NTSC

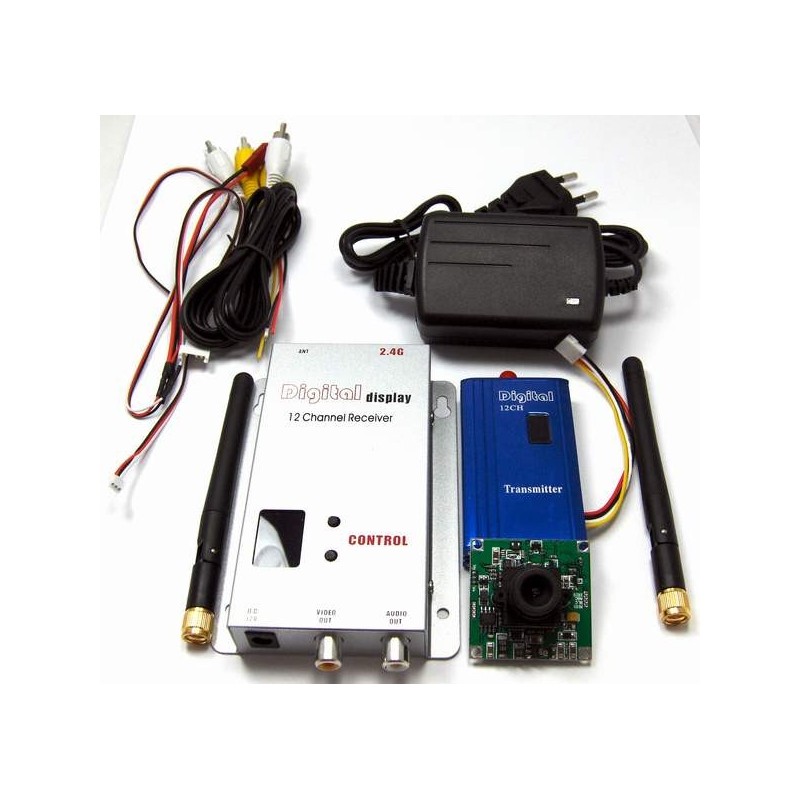

Package
1 x SONY CCD 1/3inch Camera
1 x 2.4GHz 12 channel Video Transmitter (1000mW)
1 x 2.4GHz 12 channel Video Transmitter (1000mW)
1 x 2.4GHz 12 channel Video Receiver
Camera specifications.
| CCD sensor type | 1/3 color SONY CCD Pixel |
| NTSC | 510(H)*492(V) (Included) |
| PAL | 500(H)*582(V) |
| Scanning system | Interlaced scanning |
| Synchronization | System:Inter |
| Horizontal resolution | 420TV line |
| Minimum Illumination | 0.01LUX/F1.2 |
| DSP+CCD | CXD3142R+405AK |
| S/N Ratio | 48dB |
| Gamma Modification | 0.45 |
| White balance | Auto |
| Auto backlight compensation | Auto |
| Lens | 3.6MM |
| Audio | No |
| Input voltage | 9~12.6V |
| Electric current | 80MA |
| Electronic Shutter | 1/50 (60) ~ 1/100,000s |
| Video output | 1.0VP-P composite video |
| Operation Temp. | -20~50 |
| Size | 38*38mm |
| Flight time | Approx 60min/100mah 3S |
FPV Tx Specifications.
| Channel | 12-Ch, AV synchronization |
| Power | 1000mW |
| Input voltage | 8~12V |
| Weight | 29.9g |
| Size | 41x28x16mm |
| Channels | 2.2G/2.3G/2.4G |
