1.2G 800mW 8CH Wireless AV Tranmsitter&Receiver
If you are using a 2.4G radio, or you fly with some 2.4G radio gears, don’t forget to add a low pass filter to your 0.9G/1.3G vidoe transmitters to cut down the harmonic interference.
| Frequency: | |
| 1.2/1.3G RX Series: | 1.2/1.3G TX Series: |
| 0-C(0,1,2,3,4,5,6,7,8,9,H,C) | 4-C(4,5,6,7,8,9,H,C) |
| 0.910G 0.980G 1.010G 1.040G | 1.080G 1.120G 1.160G 1.200G |
| 1.080G 1.120G 1.160G 1.200G | 1.240G 1.280G 1.320G 1.360G |
| 1.240G 1.280G 1.320G 1.360G | |

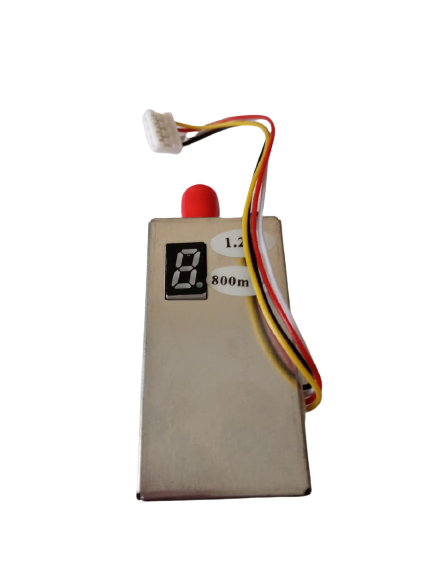

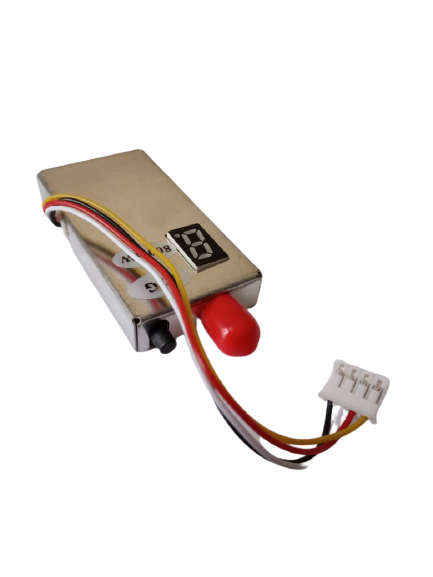

Transmitter Parameter：
Weight：78g
Dimension：53*45*19mm
Working Voltage：DC12V
Working Current：300mA
Working Frequency：1.2G-1.3G
Working Channels：8CH
Working Power：800mW
Transmitting Range：800m~1000m (In Open Fields)

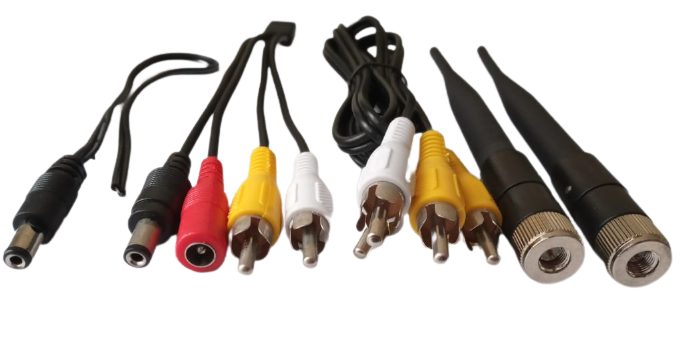

Transmitter accessories：transmitter,antenna,Tx cable

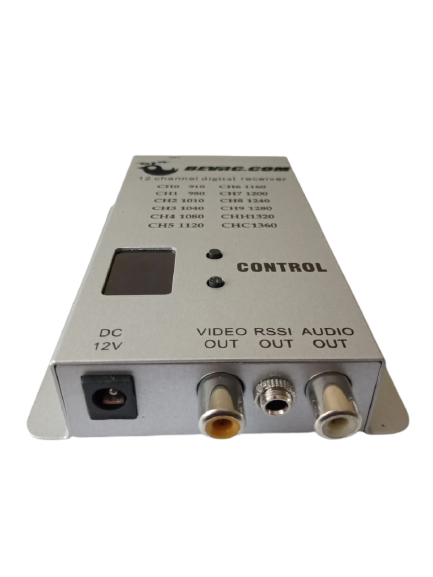

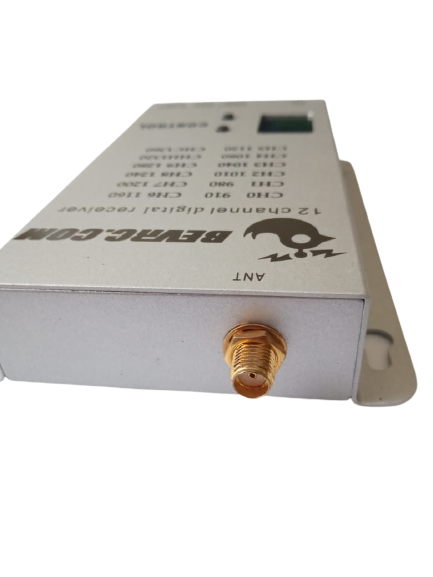

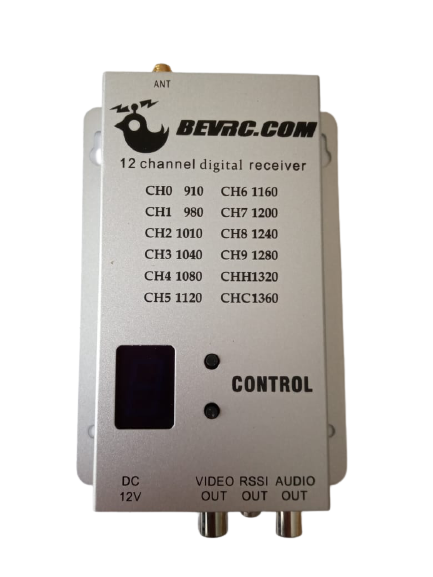

Receiver Parameter：
Weight：115g
Dimension：115*67*21mm
Working Voltage：DC12V
Working Current：260mA
Working Frequency：0.9G-1.3G
Working Channels：12CH
Receiver Accessories：Receiver,antenna,AV cable

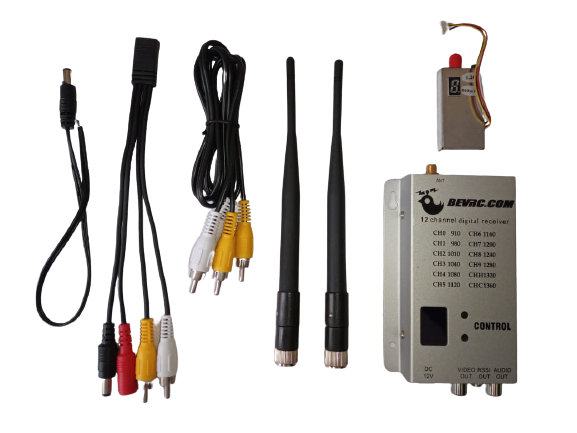

The whole set is about 485g.
<
| 1.2G 200mW | 4 | 1080 112011601200 |
| 1.3G 200mW | 4 | 1240128013201360 |
| 1.2G 400mW | 4 | 1080112011601200 |
| 1.3G 400mW | 4 | 1240128013201360 |
| 1.2G 800mW | 4 | 1080112011601200 |
| 1.3G 800mW | 4 | 1240128013201360 |
| 1.2G 1500mW | 4 | 1080112011601200 |
| 1.3G 1500mW | 4 | 1240128013201360 |
