E305 (6xMotor/ESC, 4xPair Props, Accessories)


SKU: E305-6
Disponible : 1 disponibles

Finely customized and painstakingly engineered, the E305 Tuned Propulsion System is specifically designed for multirotor copters weighing 2.2-5.5 pounds (1-2.5 kg). Combining increases in efficiency with proven, classic components, the E305 system provides maneuverability, stability, and efficiency in a highly cost-effective package.

1 disponibles


Next Generation Motor
Built with improved manufacturing techniques, the brand new 2312E motor represents a significant upgrade over the previous 2312 model. The optimized electro-magnetic system boosts efficiency by nearly 7% and lowers cogging torque, which provides noticeably smoother performance at low RPMs. A newly designed motor base not only provides better heat dissipation, but also a more advanced, hi-tech look.

420 LITE ESC – Tried and Tested
The 420 LITE ESC utilizes the tried and tested square-wave drive architecture, further perfected by DJI engineers.  Based on this classic design, the 420 LITE provides simplified functions in a much smaller and lighter package than the E310. Internally, an efficient and responsive algorithm is hard at work to provide your platform with a level of maneuverability and stability that belies its size.

Z-Blade 9450 Propellers
Another masterpiece by DJI Propulsion Laboratory. Aerodynamically optimized and precisely manufactured, the Z-Blade 9450 propellers produce powerful thrust with excellent dynamic balance. These reliable blades easily handle your FPV and other payloads while keeping your platform stable and virtually vibration-free, helping reduce the chance of jello or other unwanted effects.

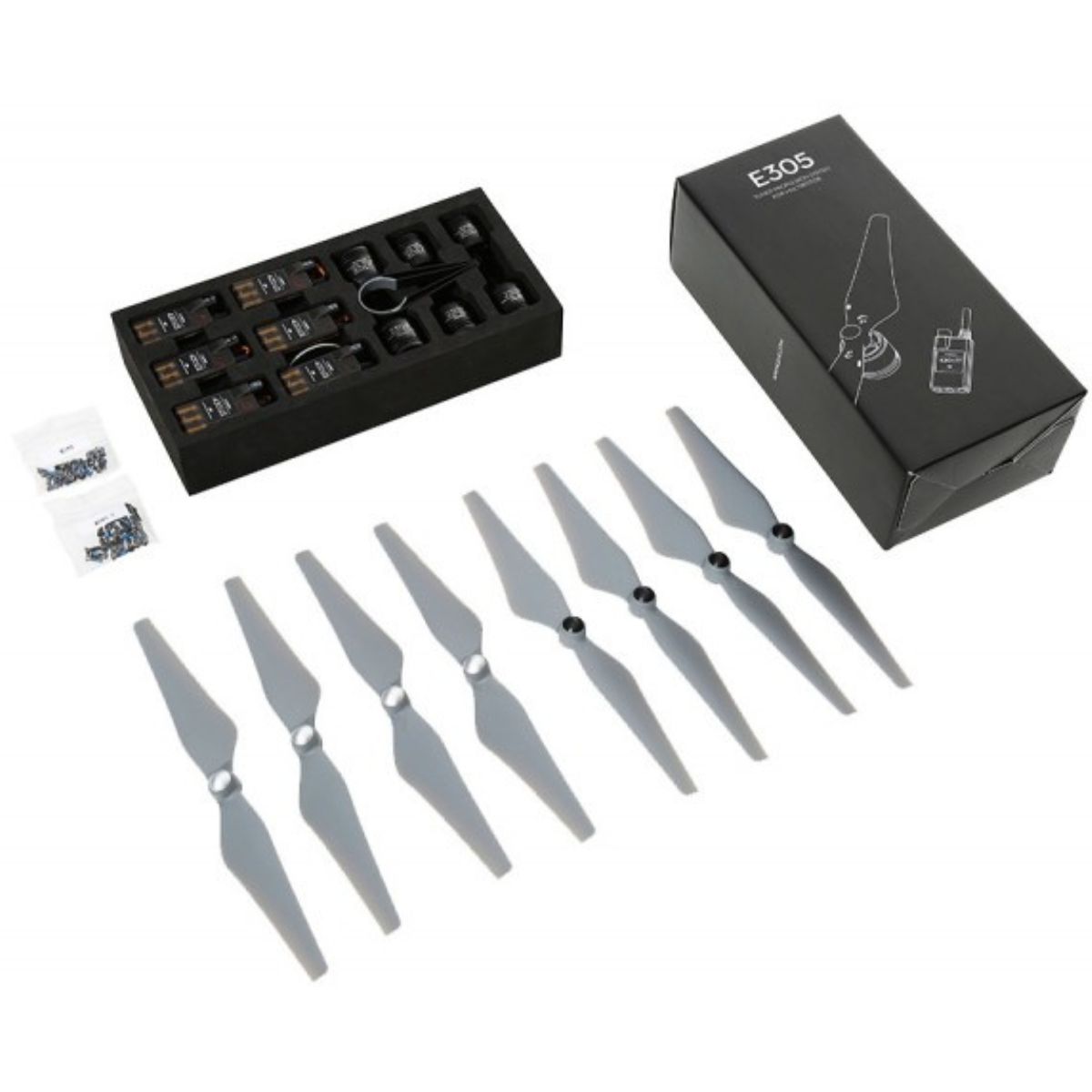

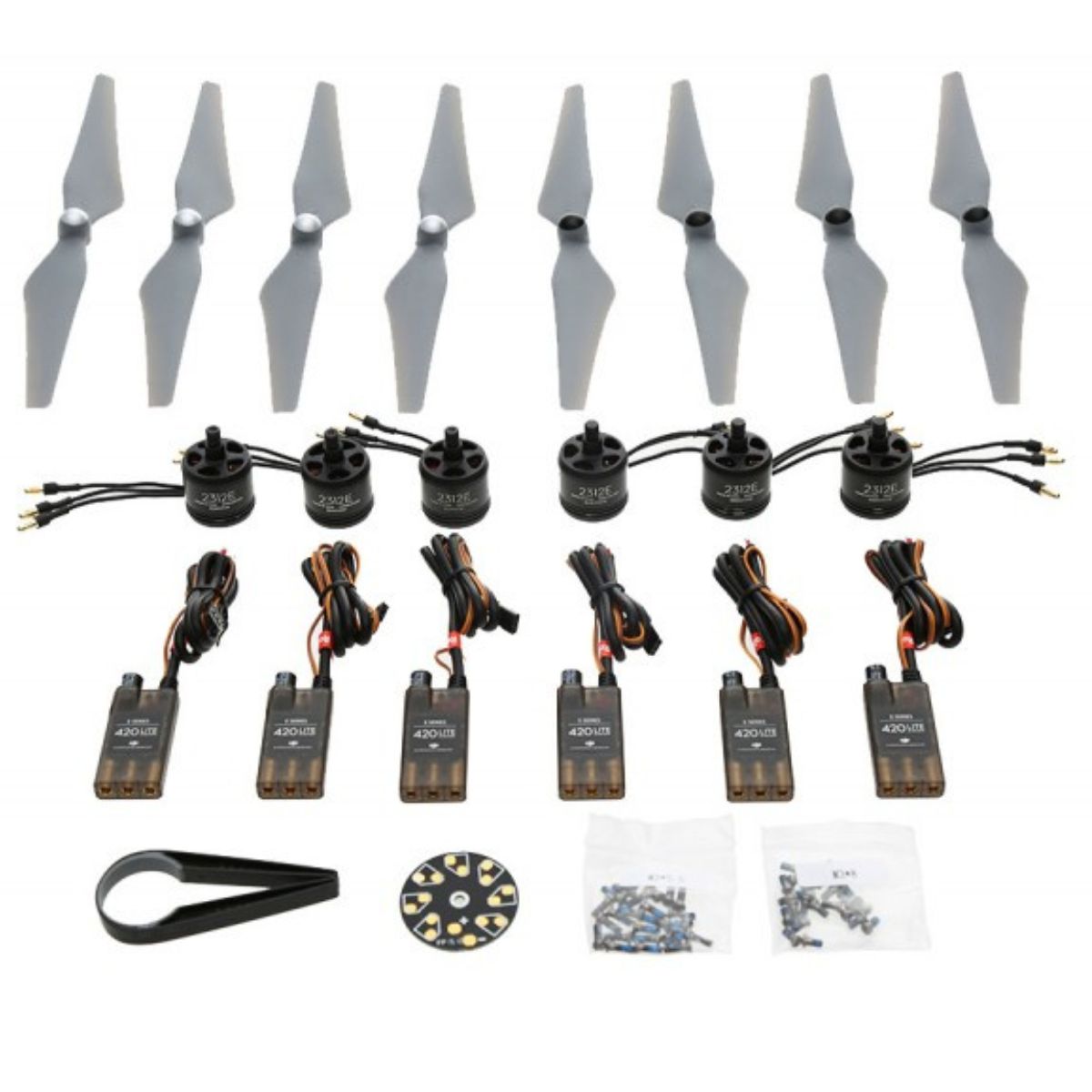

In The Box

  • 3 Pairs of 2312E Motors (CWx3+CCWx3)
  • 4 Pairs of 9450 Propellers
  • 6 420 LITE ESCs
  • Accessories: 1 Power Hub, 1 Propeller Removal Clamp, Screws (M3x8, M3x5.5)



Battery (Recommended)
4S LiPo
Max. Thrust
850 g/rotor (14.8 V, Sea Level)
Takeoff Weight (Recommended)
350 ~ 400 g/rotor (Sea Level)
Working Temperature
-10 ~ 40°C


Max. Allowable Voltage
17.4 V
Max. Allowable Current (Persistent)
20 A
Max. Allowable Peak Current (3 Seconds)
30 A
PWM Input Signal Level
3.3 V / 5 V Compatible
Signal Frequency
30 ~ 450 Hz
3S ~ 4S LiPo
Weight (Without Cable)
12.5 g
Weight (With Cable)
27 g


Stator Size
23×12 mm
800 rpm/V
56 g


Diameter / Thread Pitch
24×12.7 cm(9.4×5.0 inch)
Weight (Single)
13 g
