E600 (6xmotor/ESC, 5 pair props, accessories pack)
Features of DJI E600
- 12×4.2 inch Rotor / Propeller – With the state of the art areodynamic efficiency and only nearly half of the inertia product of the normal12x3.8 inch rotor, the 12×4.2 inch rotor offers you an outstanding flight experience. The rotors are carefully balanced dynamically.
- 3508 415 Kv Motor – Self-tightening mechanism dramatically reduces any chance of loosening rotor or mistakenly installed rotors. Tool-free mounting and dismounting makes storage and transportation much easier.
- 20A ESC – This new and improved ESC along with new highly efficient and quick response algorithms, combine to provide drastic optimization of both motor and rotor parameters.
Also feature an electromagnetic compatibility design with a coaxial-cable.
Specifications of DJI E600
- Recommended load: 600 g/axis
- Recommended battery: 6S Lipo
- Maximum Thrust: 1600 g/axis
- Working Temperature: -5°C ~ 40°C
- Unit per Package: Quad or hexa
- ESC Current: 20A OPTO
- ESC Signal Frequency: 30Hz~450Hz
- ESC Voltage: 14.8 V~25.2V
- Battery: 4S~6SLiPo
- Motor Stator Size: 38×8mm
- Moto KV: 415rpm/V
- Motor Weight: 90g
- Propeller Diameter / Thread Pitch: 33x11cm / 12×4.2inch

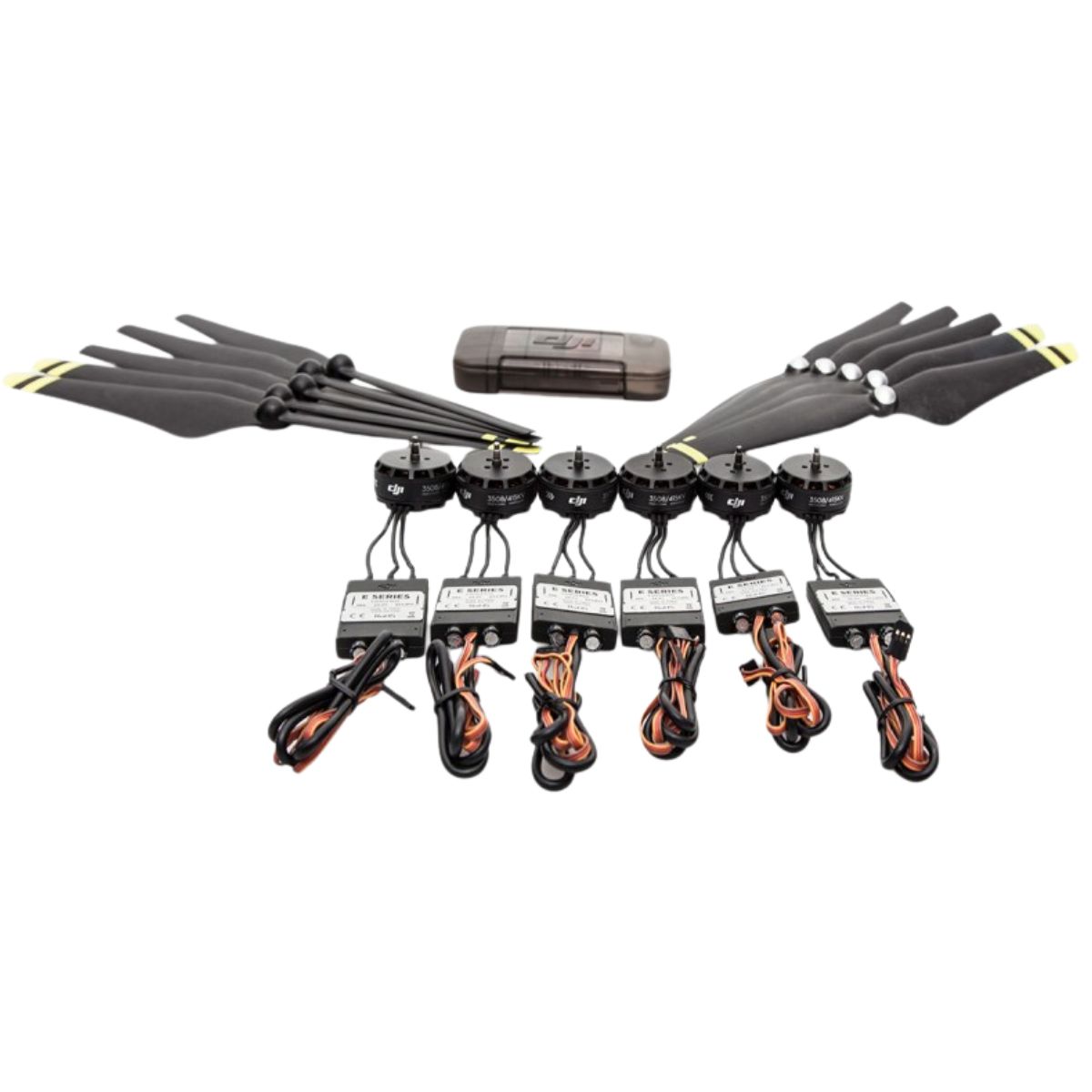

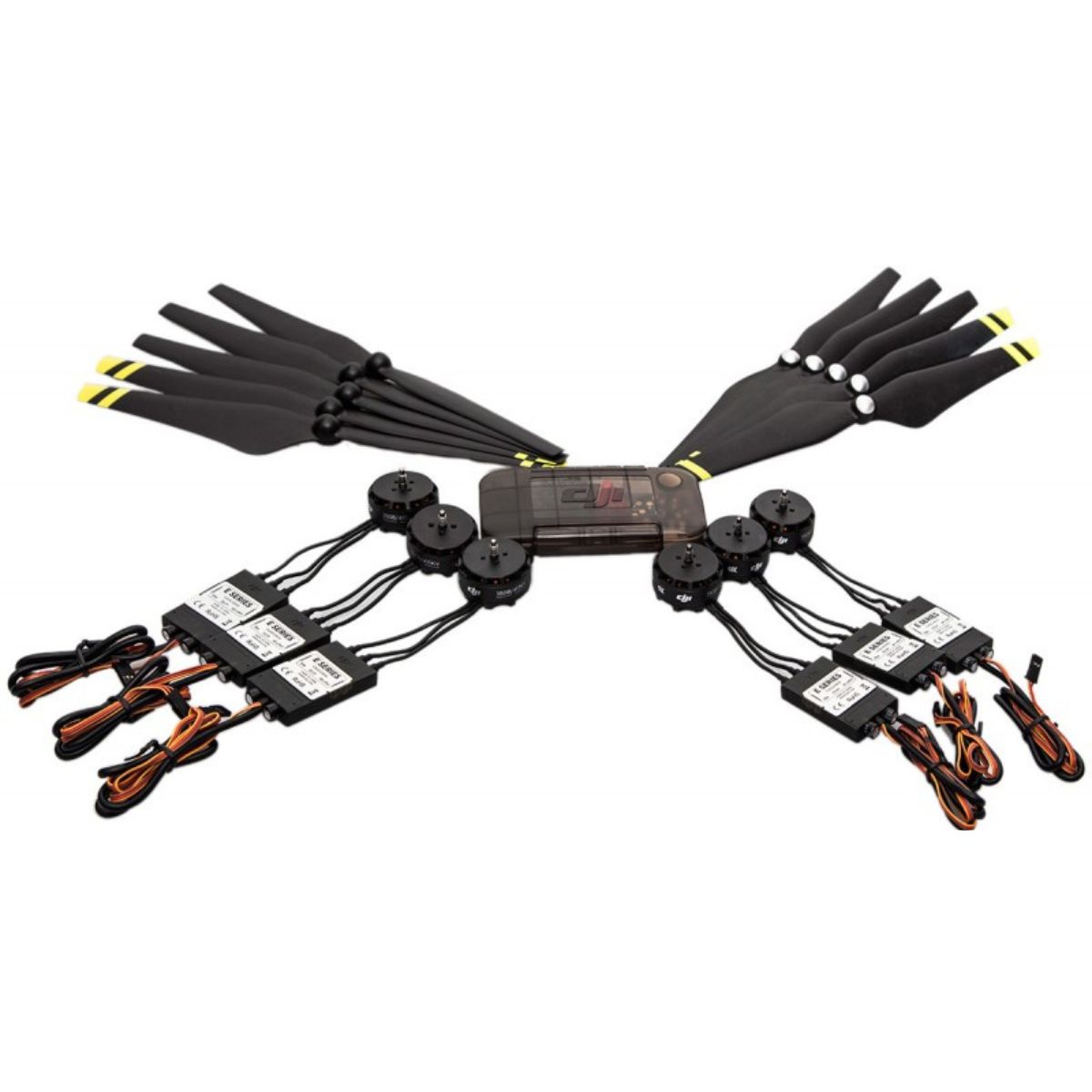

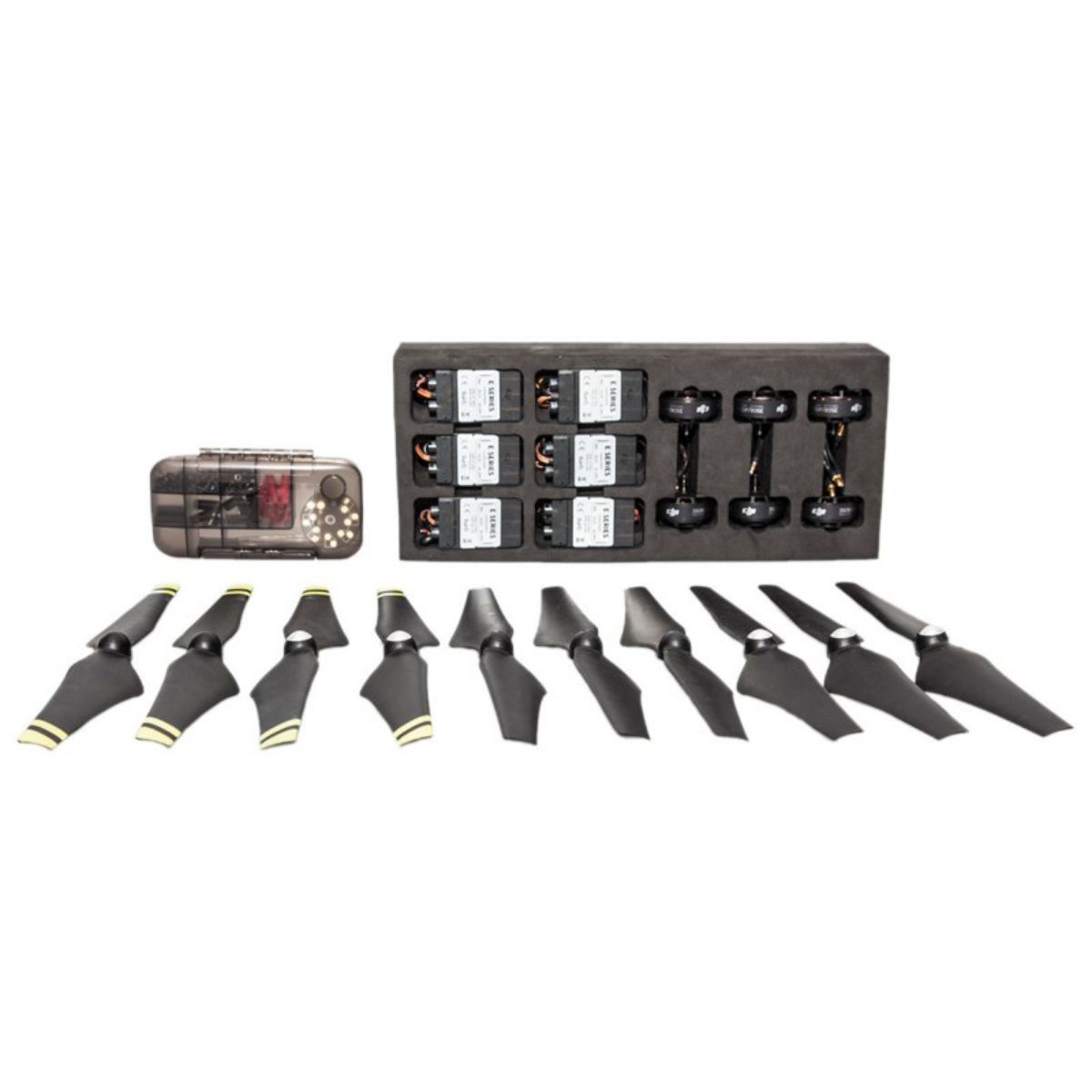

Package Includes of DJI E600
- 3508 Motor x 4
- 20A ESC x 4
- 12×4.2 Prop x 4 (pair)
- Accessories Pack x 1
- (Power Hub Screws, Wrench for propeller fix, 2.0mm hexagonal wrench, Double side tape, etc.)
Compatibility of DJI E600
”
