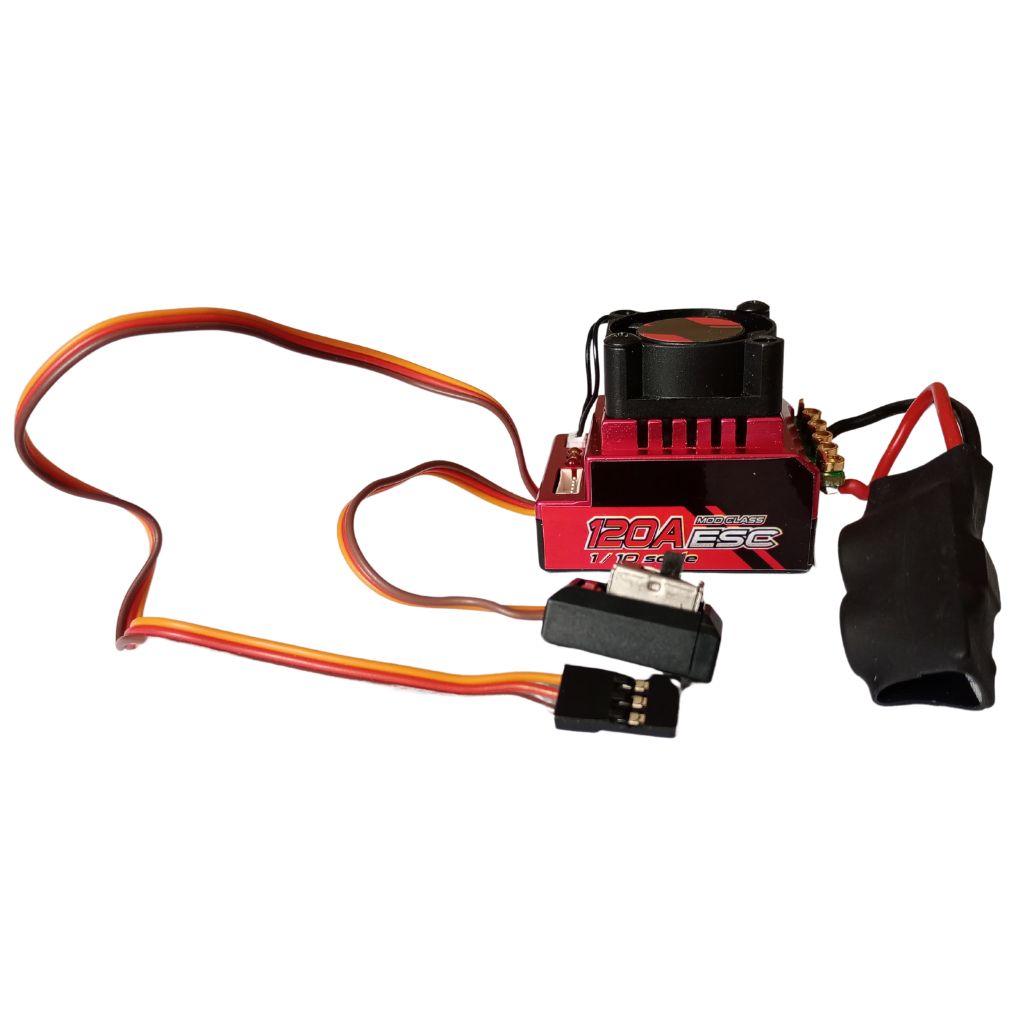

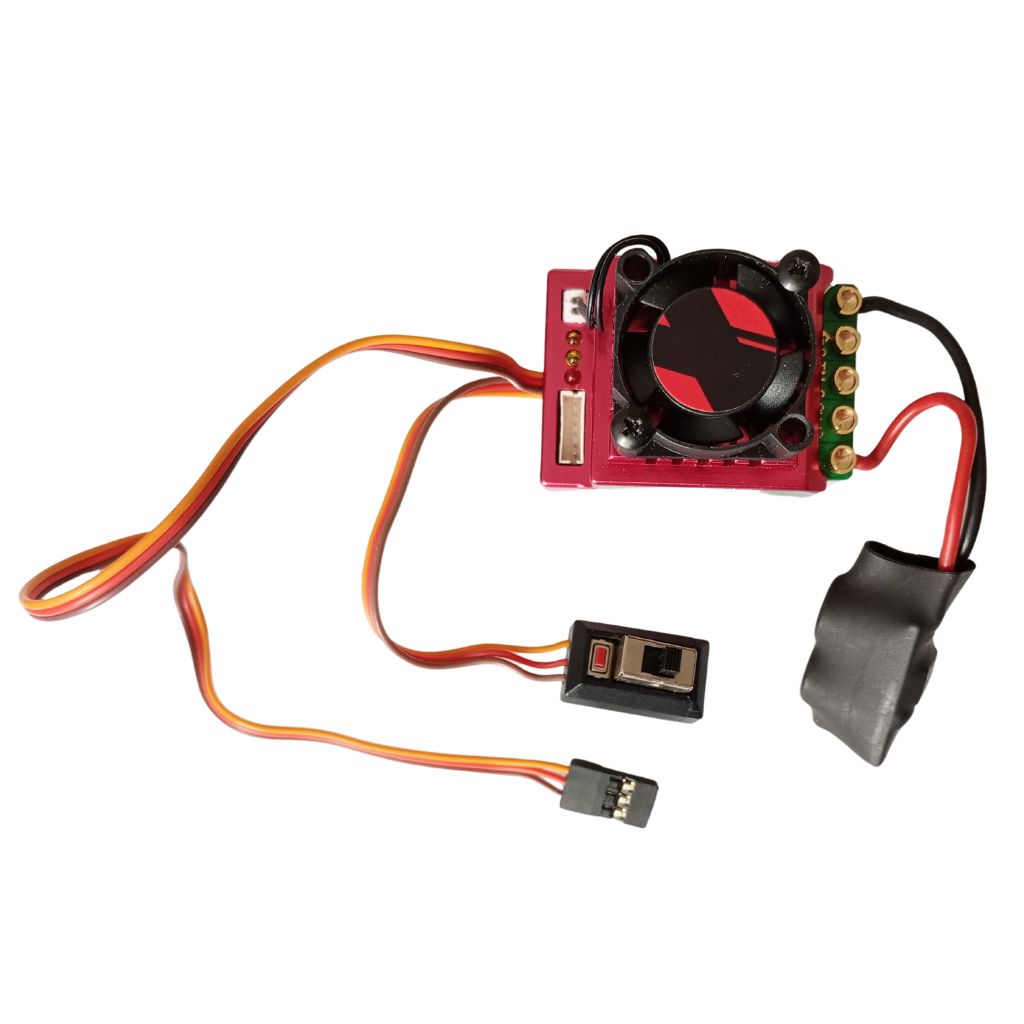

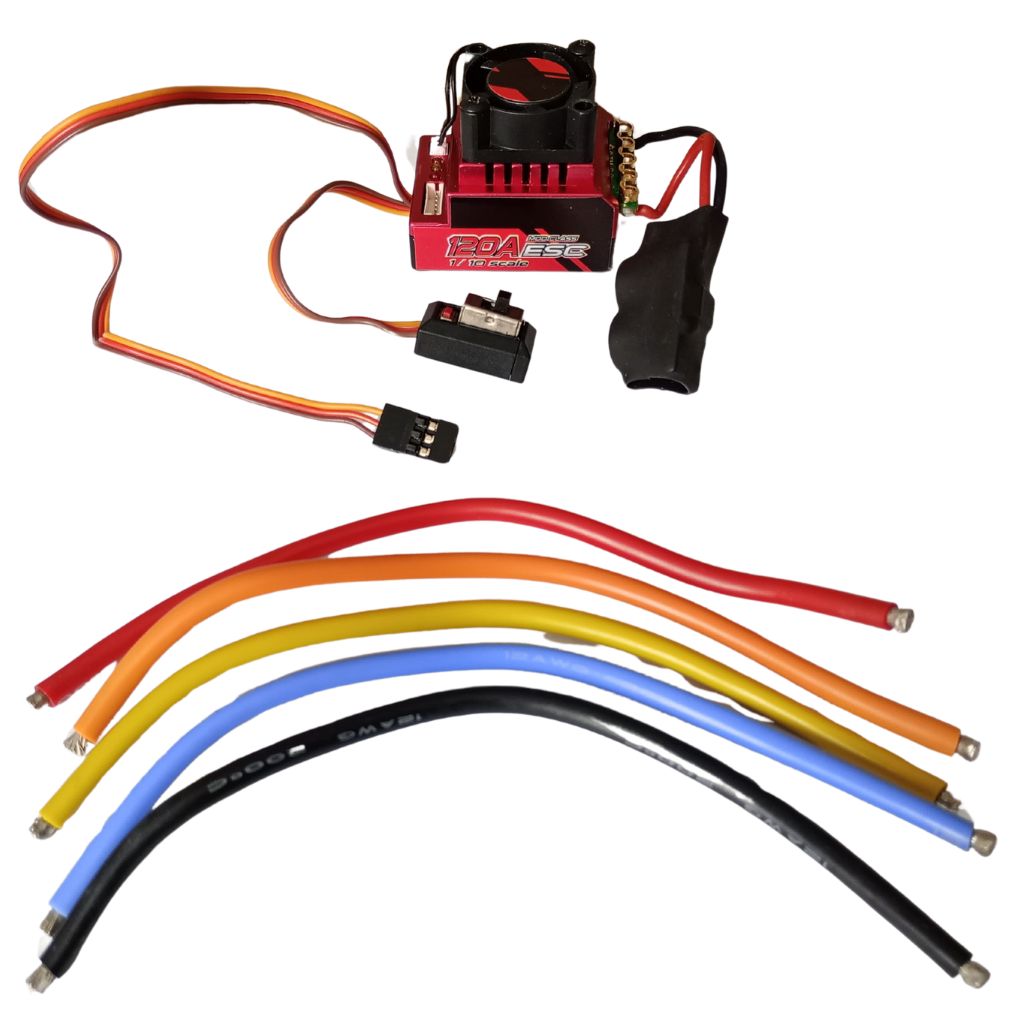

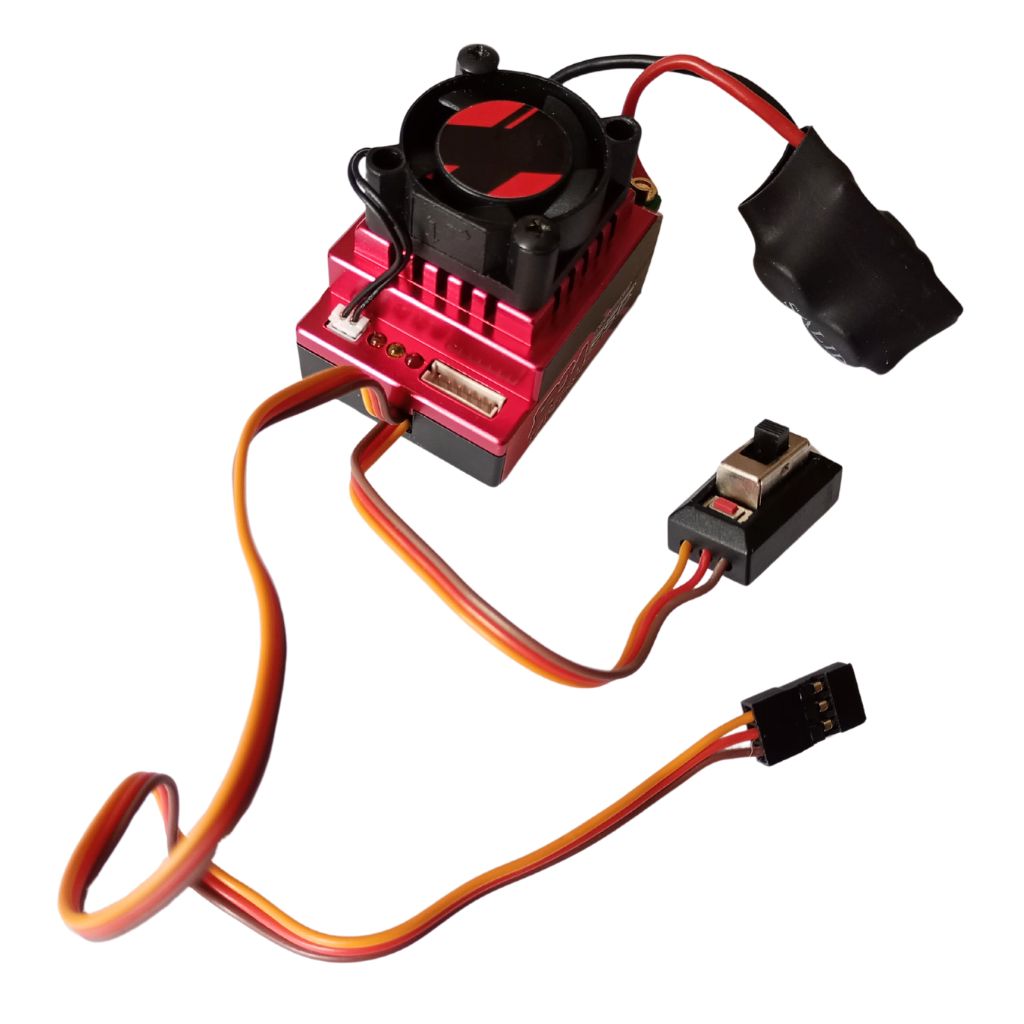

Introducing the Turnigy Trackstar 120Amp TURBO 1/12 and 1/10 sensored brushless car ESC.

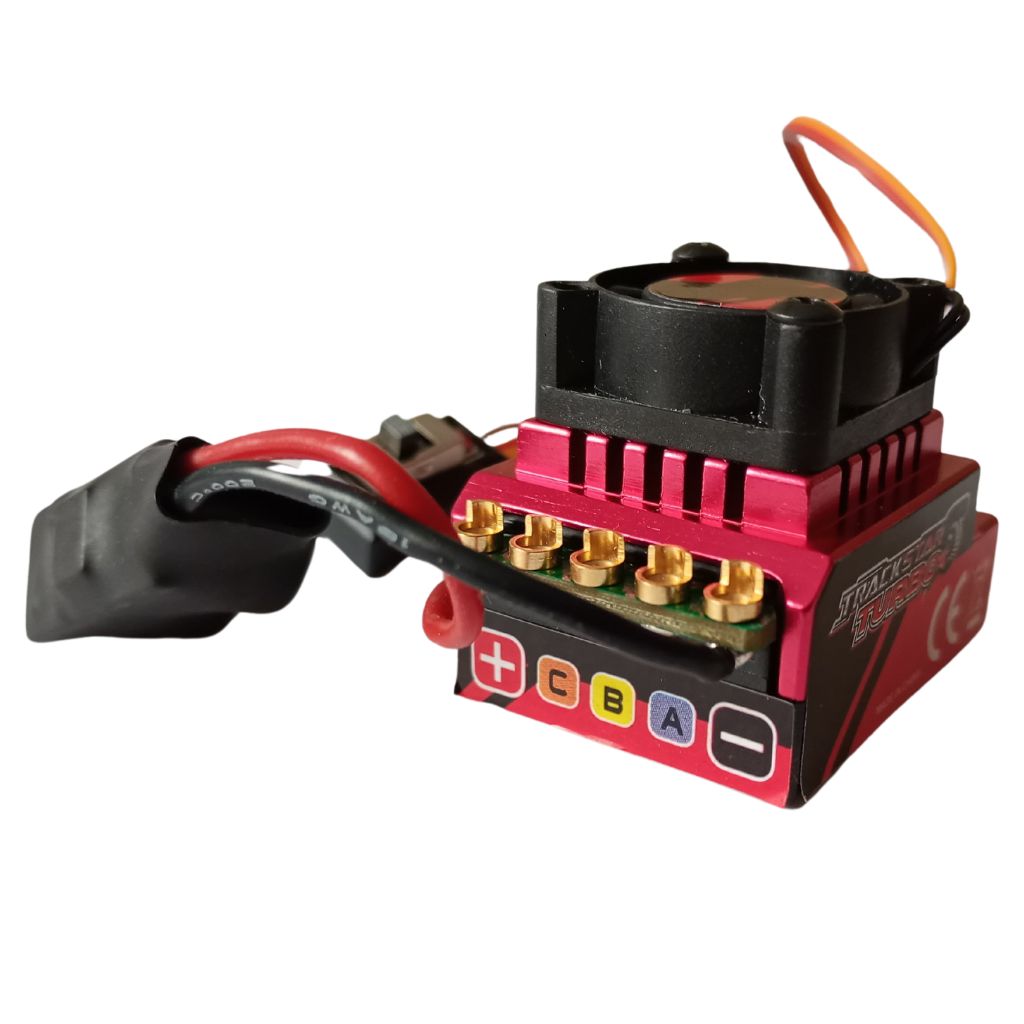

Featuring a CNC alloy case top which incorporates the heatsink (with a fan)  for the Mosfets, neat terminal cups for both the battery input and ESC output cables. The ESC software has a large number of user programmable settings such as Punch, initial brake, drag brake, boost timing RPM, boost timing, Turbo timing, Turbo delay, Turbo ramp, boost acceleration – allowing this ESC to be customised in nearly every way you could ever need for 1/12 or 1/10 scale on or off road racing!

So what is Turbo? Well simply put – Turbo is a short duration burst of top end motor RPM and power – best used sparingly, it is similar in effect to KERS on the current Formula 1 cars! The Turbo function is fully user programmable too!

Spec:
Max Voltage: 2s Lipo / 6 cell Nimh
Motor limit: 4.0T
Resistance: 0.0003 ohm
Operating current: 120A
Burst Current: 760A
Bec Current: 3A
Bec Voltage: 6v

Programming Options:
Battery Type: Lipo/nimh
Operation Mode: Forward/Brake/Reverse; Forward/Brake Only
Initial Brake: 10% ~ 80%
Drake Brake: 0% ~ 30%
Motor Timing: Incremental
Acceleration Punch: 1-9
Forward Limit: 0% ~ 90%
Reverse limit: 10% ~ 100%
Drive Frequency: 8Khz, 16Khz, 24khz
Brake Frequency: 1,2,4,8,16Khz
Dead Band: 2, 3, 4, 5, 6
weight: 63g (without cables)
